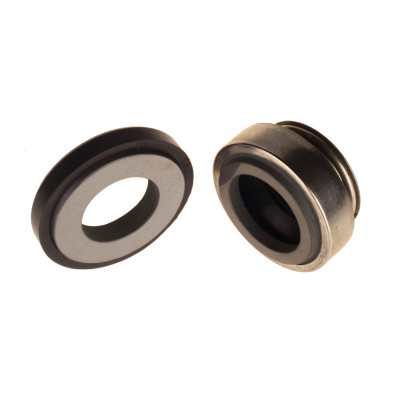

Type 75 Component Seals

Type 75 Component Seals

Operating Limits

Pressure: 6 bar Temperature: -40 °C – 180 °C ( Viton ) Speed: 12 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon

Elastomer

Supplied in Viton as standard
Nitrile available on request

d	D	D1	D1	D1	D1	L1	L
metric		A-SEAT	B-SEAT	C-SEAT	D SEAT
8	24		26			5,5	9,5
10	24		26			8	13
12	24	35				8	13
12	24		26			8	13
13	24		26			8	13
14	28/32	30				8	13
14	28/32		38			8	13
14	28/32			25,4		8	13
14	28/32				28	8	13
15	32/39	30				8	13
15	32/39		38			8	13
16	32/39	30				8	13
16	32/39		38			8	13
16	32/39		42			8	13
17	39		42			8	13
18	39		42			8	13
19	39		42			8	13
20	39/42	42				8	13
20	39/42		45			8	13
20	39/42			35		8	13
22	42		45			10	13
24	47		50			10	13,5
25	42/47		50			10	13,5
28	54		57			10	15
30	54		57			10	15
32	54		57			10	15
35	60		63			10	16
38	65		68			12	18
40	65		68			12	18

Download the Component Seal Type 75 Spec Sheet
