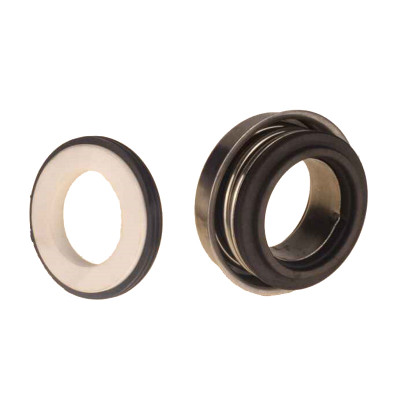

Type 70 Component Seals

Type 70 Component Seals

Type 70 Component Seals

Operating Limits

Pressure: 6 bar
Temperature: -40 °C – 180 °C ( Viton )
Speed: 15 m/s

Faces

Carbon vs Ceramic

Elastomer

Supplied in Nitrile as standard
Viton available on request

INCHES	d1	d2	d3	d5	d7	L1	L3	L4
3/8	11,0	24	29	12	23	17	4	7
1/2	14,2	28,55	32	14	25	18,2	5	8
1/2	14,2	30	35	15	24/23	18	5	8
1/2	14,2	33,4	38	14	25	18	5	6,7
5/8	18,2	36,45	41,5	18	31	19,8	5	8
5/8	18,2	38,1	41,5	18	31	19,8	5	8
3/4	21,2	38/40	43,8	21	35	20,5	5	9,5
3/4	21,2	38/40	43,8	21	35	20,5	5	10,3
1”	26,4	46/47	51	29	44	25	7	10
1”	26,4	52	57	29	48	25	7	10
1 1/8	31,0	52	57	32	48	27	8	11
