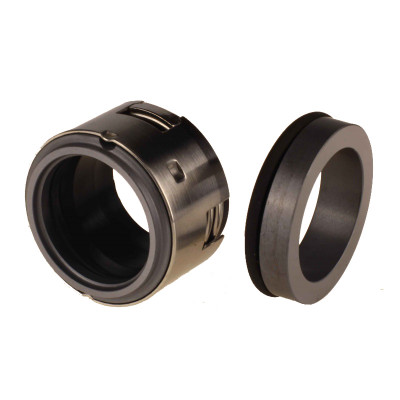

Type 52 Component Seals

Type 52 Component Seals

Type 52 Component Seals

Operating Limits

Pressure: 35 bar
Temperature: -30 °C – 204 °C ( Viton )
Speed: 15 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon
Tungsten vs Tungsten

Elastomer

Supplied in Viton as standard
Nitrile and EPDM available on request

d	d1	L		d	d1	L
14	24	23		48	64	32
16	26	23		50	66	34
18	32	24		53	69	34
20	34	24		55	71	34
22	36	24		58	78	39
24	38	26,7		60	80	39
25	39	27		63	83	39
28	42	30		65	85	39
30	44	30,5		68	88	39
32	46	30,5		70	90	45,5
33	47	30,5		75	95	45,5
35	49	30,5		80	104	45
38	54	32		85	109	45
40	56	32		90	110	50
43	59	32		95	119	50
45	61	32		100	124	50

Download the Component Seal Type 52 Spec Sheet
