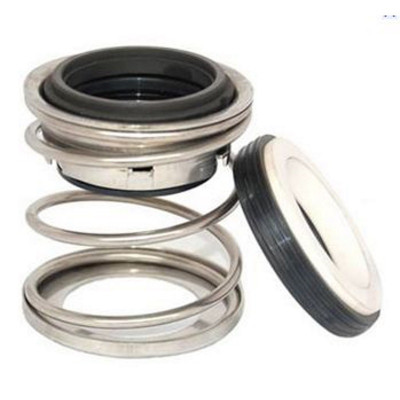

Type 20 Component Seals – Metric

Type 20 Component Seals – Metric

Type 20 Component Seals – Metric

Operating Limits

Pressure: 28 bar
Temperature: -30 °C – 204 °C ( Viton )
Speed: 13 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon
Tungsten vs Tungsten

Elastomer

Supplied in Viton as standard
Nitrile and EPDM available on request

d	d1	d7	L1	L2	L3
12	32	27,79	33,74	25	8,74
15	35	30,95	35,32	25	10,32
16	35	30,95	35,32	25	10,32
18	40	34,15	35,32	25	10,32
20	41	35,70	35,32	25	10,32
22	43	37,30	35,32	25	10,32
24	47	40,50	35,32	25	10,32
25	47	40,50	35,32	25	10,32
28	56	47,63	44,99	33	11,99
30	59	50,80	44,99	33	11,99
32	59	50,80	44,99	33	11,99
35	63	53,98	44,99	33	11,99
38	67	57,15	44,99	33	11,99
40	71	60,35	44,99	33	11,99
42	74	63,50	52,99	41	11,99
43	74	63,50	52,99	41	11,99
45	74	63,50	52,99	41	11,99
48	77	66,70	52,99	41	11,99
50	81	69,85	52,99	41	11,99
53	84	73,05	54,50	41	13,50
55	88	76,20	54,50	41	13,50
58	88	79,40	54,50	41	13,50
60	91	79,40	54,50	41	13,50
63	94	82,55	54,50	41	13,50
65	100	92,10	64,90	49	15,90
70	103	95,25	64,90	49	15,90
73	108	98,45	67,90	52	15,90
75	111	101,65	67,90	52	15,90
