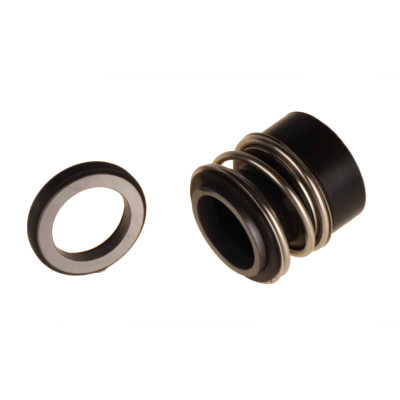

Type 12 Component Seals

Type 12 Component Seals

Operating Limits

Pressure: 12 bar
Temperature: -30 °C – 204 °C ( Viton )
Speed: 10 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon
Tungsten vs Tungsten

Elastomer

Supplied in Viton as standard
Nitrile and EPDM available on request

d	d1	L1
10	22,5	25,9
12	25	25,9
14	28,5	28,4
15	28,5	28,4
16	28,5	28,4
18	32	30
19	37	30
20	37	30
22	37	30
24	42,5	32,5
25	42,5	32,5
28	49	35
30	49	35
32	53,5	35
33	53,5	35
35	57	35
38	59	36
40	62	36
42	65,5	36
43	65,5	36
45	68	36
48	70,5	36
50	74	38
53	78,5	36,5
55	81	36,5
58	85,5	41,5
60	88,5	41,5
65	93,5	41,5
68	96,5	41,2
70	99,5	48,7
75	107	48,7
80	112	48
85	120	46
90	127	51
95	132	51
100	137	51

Download the Component Seal Type 12 Spec Sheet
