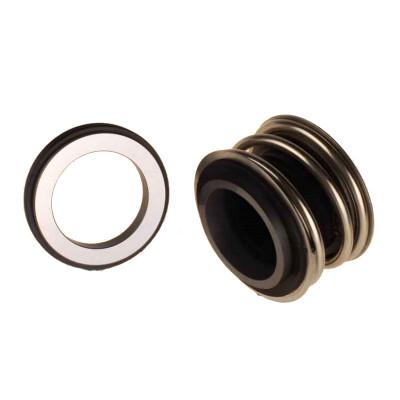

Type 11 Component Seals

Type 11 Component Seals

Operating Limits

Pressure: 12 bar
Temperature: -30 °C – 204 °C ( Viton )
Speed: 10 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon
Tungsten vs Tungsten

Elastomer

Supplied in Viton as standard
Nitrile and EPDM available on request

d	d1	L
10	22,5	14,5
12	25	15
14	28,5	17
15	28,5	17
16	28,5	17
18	32	19,5
19	37	21,5
20	37	21,5
22	37	21,5
24	42,5	22,5
25	42,5	23
28	49	26,5
30	49	26,5
32	53,5	27,5
33	53,5	27,5
35	57	28,5
38	59	30
40	62	30
42	65,5	30
43	65,5	30
45	68	30
48	70,5	30,5
50	74	30,5
53	78,5	33
55	81	35
58	85,5	37
60	88,5	38
65	93,5	40
68	96,5	40
70	99,5	40
75	107	40
80	112	40
85	120	41
90	127	45
95	132	46
100	137	47

Download the Component Seal Type 11 Spec Sheet
