Type 10 Component Seal

Type 11 Component Seals

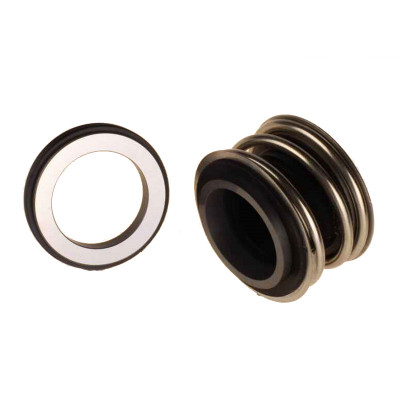

Type 1 S Component Seals

Type 1 S Component Seals

Type 1 S Component Seals

Operating Limits

Pressure: 10 bar
Temperature: -30 °C – 204 °C ( Viton )
Speed: 12 m/s

Faces

Carbon vs Ceramic
Silicon vs Silicon
Tungsten vs Tungsten

Elastomer

Supplied in Viton as standard
Nitrile and EPDM available on request

d	d1	L
10	22,5	25
12	25	25
14	28,5	25
15	28,5	25
16	28,5	25
18	32	25
19	37	25
20	37	25
22	37	25
24	42,5	25
25	42,5	25
28	49	33
30	49	33
32	53,5	33
33	53,5	33
35	57	33
38	59	33
40	62	33
42	65,5	41
43	65,5	41
45	68	41
48	70,5	41
50	74	41
53	78,5	41
55	81	41
58	85,5	41
60	88,5	41
65	93,5	49
68	96,5	49
70	99,5	49
75	107	52
80	112	56
85	120	56
90	127	59
95	132	59
100	137	62

Download the Component Seal Type 1 S Spec Sheet
